Economical Rotary — Easy to Operate

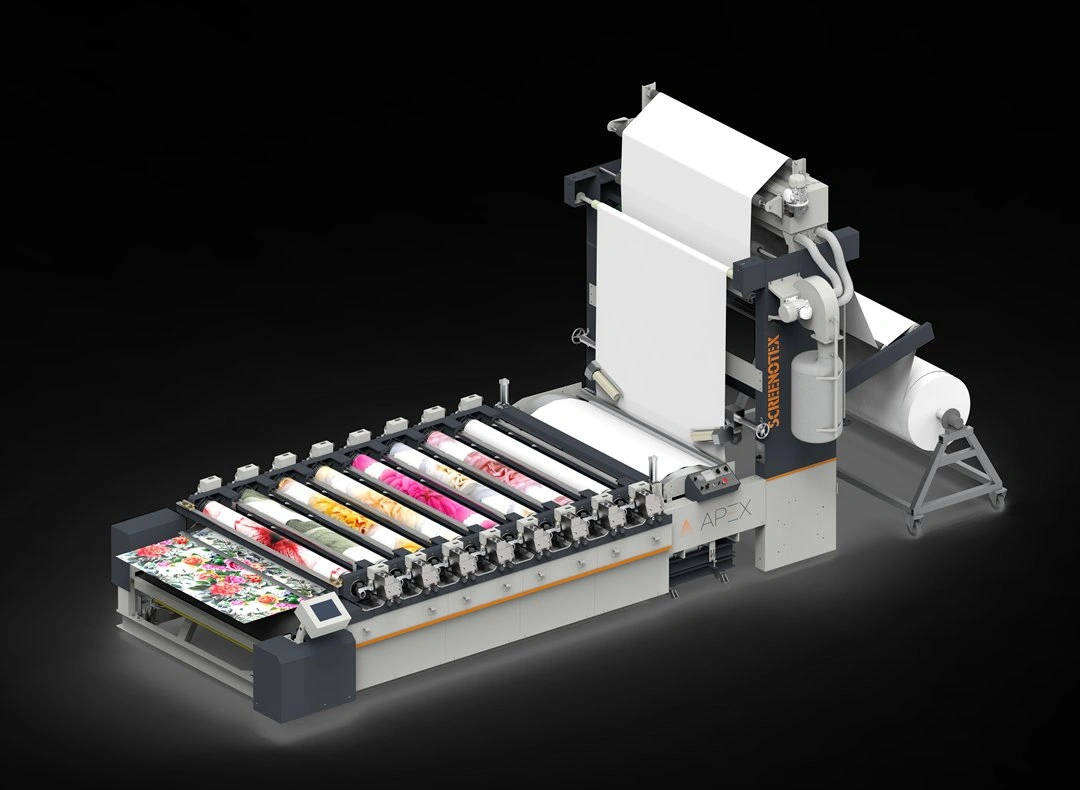

The Screenotex Apex is the most accessible entry point into rotary screen printing — delivering 80 m/min production speed, up to 16 heads, and the choice of magnetic or pneumatic squeegee systems, with a common AC motor and gearbox drive that keeps operation simple and investment low.
A single AC motor drives both the blanket and all heads through a shared gearbox system, with inverter-controlled speed — delivering reliable, straightforward operation and low complexity for operators entering rotary printing.
Less automation means fewer system parameters to manage — the Apex is designed to be operated effectively without a highly skilled servo-system specialist, reducing the dependency on advanced technical operator knowledge.
AC motor and gearbox drive architecture brings the capital investment for rotary screen printing significantly below servo-based systems — making the Apex the most accessible path to high-speed rotary production.
The Apex delivers 80 m/min rotary screen printing with up to 16 heads — using a common AC motor and gearbox system that keeps operation simple, investment low, and maintenance minimal for businesses entering the rotary segment for the first time.
A single AC motor drives both the blanket and all heads through a shared gearbox, controlled by an inverter for speed regulation — a proven, reliable drive architecture that keeps operation straightforward and investment accessible.
Configure the Apex with up to 16 rotary heads — enabling multi-colour design repeats in a single production pass for a wide range of design categories at an economical price point.
Both squeegee systems are available on the Apex — magnetic for high ink penetration and colour saturation, or pneumatic blade for higher print sharpness — so the Apex is not restricted in the quality of print it can deliver.
Pneumatically operated colour feeding pumps deliver consistent ink supply to each rotary head — maintaining even colour saturation and print density regardless of production speed.
Included as standard — the brushing-cleaning unit removes dust, lint, and fibres from the fabric surface before the print zone, protecting screens from clogging and maintaining print quality throughout the production run.
Available in four repeat sizes — 640, 820, 914, and 1018 mm — the same repeat size range as the Apex PRO and Climax, so transitioning between models uses the same screen inventory.
Available in 1280, 1620, and 1850 mm printing widths — with higher widths available on request — covering all standard fabric widths in the woven and knitted textile market.
Suitable for both woven and knitted fabric constructions with appropriate attachments — giving the Apex the same fabric compatibility as the higher-range Apex PRO and Climax.
Simple drive architecture with fewer servo components means fewer maintenance touchpoints and a lower spare parts inventory requirement — keeping the total cost of ownership low throughout the machine's service life.
Both the magnetic and pneumatic squeegee systems are available — select the one that matches your fabric, design complexity, and priority: deep ink penetration or maximum sharpness.
Magnetic force maintains constant, even pressure across the full screen width — driving deep, consistent ink penetration into the fabric structure for rich, saturated colour depth.
Pneumatic air pressure holds the blade at precise, consistent contact — delivering maximum print sharpness and fine line definition on detailed, complex designs.
The Apex makes rotary screen printing at 80 m/min accessible — without the capital outlay of servo-driven systems. For producers entering rotary printing or running designs where complex servo registration is not required, the Apex delivers outstanding value.
Common AC motor and gearbox drive eliminates the high capital cost of servo systems — making the Apex the most accessible entry point into high-speed rotary screen printing in the Screenotex range.
Less automation complexity means less operator training burden — the Apex can be operated effectively by production teams without specialist servo system knowledge, reducing your dependency on highly skilled technicians.
80 m/min maximum speed with up to 16 heads delivers high throughput — matching the Climax and Apex PRO on speed, making the Apex a genuinely high-capacity machine at an economical price.
Up to 16 rotary heads with magnetic or pneumatic squeegee options enables the Apex to handle complex multi-colour designs — not a stripped-down machine, but an economically driven one.
Included brushing-cleaning unit removes contamination before the print zone — protecting rotary screens at high speed and maintaining consistent print quality throughout the production run.
Full choice of magnetic squeegee for deep ink penetration and saturation, or pneumatic blade for maximum sharpness — the Apex doesn't sacrifice print quality options for its economical positioning.
Simple drive architecture, fewer servo components, and proven AC motor technology means lower maintenance requirements and reduced spare parts cost over the machine's service life.
The Apex uses the same repeat sizes, print widths, and screen system as the Apex PRO and Climax — so upgrading to a higher model later uses the same screen inventory without retooling.
Key technical parameters for the Screenotex Apex rotary screen printing machine.
| Max Speed | 80 Metres / Min | Max Heads | Up to 16 (Configurable) |
|---|---|---|---|
| Drive System | Common AC Motor + Gearbox + Inverter | Blanket & Head Drive | Common AC Motor + Gearbox |
| Repeat Sizes | 640 / 820 / 914 / 1018 mm | Printing Widths | 1280 / 1620 / 1850 mm (Higher on Request) |
| Squeegee System | Magnetic or Pneumatic Blade | Color Feeding | Pneumatically Operated Pumps |
| Brushing Unit | Included as Standard | Fabric Compatibility | Woven & Knitted (with Attachments) |
| Model Classification | Economical — Entry-Level Rotary |
| Specification | Apex | Apex PRO | Climax |
|---|---|---|---|
| Drive System | AC Motor + Inverter | Servo (Worm GB) | Servo (Planetary GB) |
| Blanket Drive | AC Motor | Servo Driven | Servo Driven |
| Max Heads | Up to 16 | Up to 16 | 24+ |
| Max Speed | 80 m/min | 80 m/min | 80 m/min |
| Registration | Good | Great | Unmatched |
| Energy Saving | — | Optimum | High |
| Positioning | Economical | Optimal Auto | Advanced Auto |
