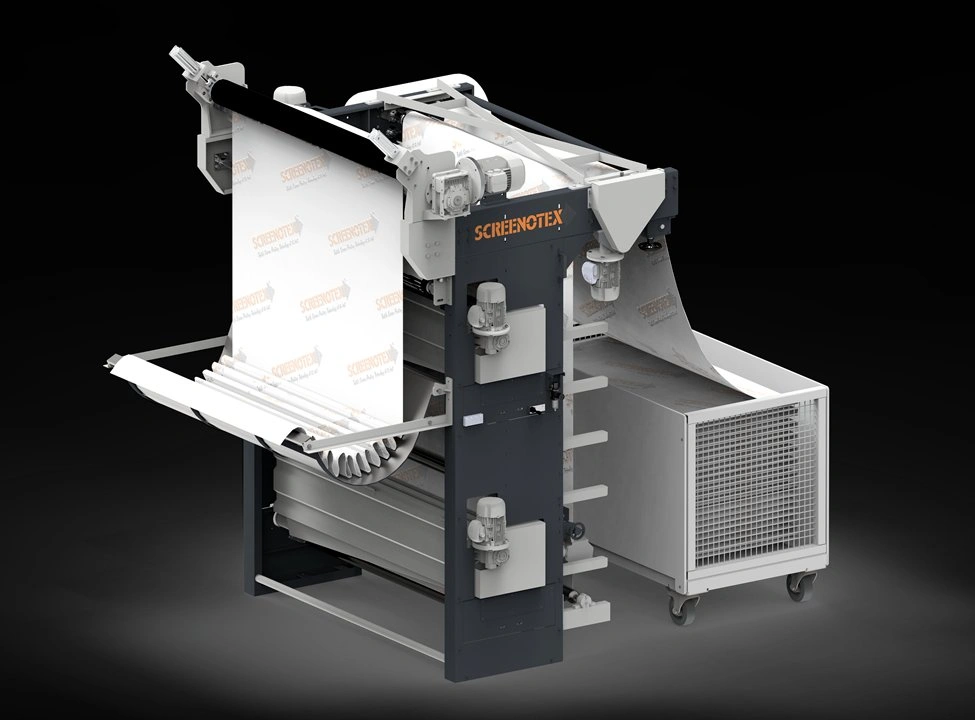

A heavy-duty, high-throughput fabric cleaning system engineered for industrial-scale production — featuring dual brushing units, Velcro thread removal, and powerful suction to deliver perfectly clean fabric at up to 6000 m/hr.
The High Speed Fabric Cleaning Unit combines dual brushing action, positive-driven scroll rolls, Velcro thread extraction, and heavy-duty suction into a single, robust machine capable of processing fabric at twice the speed of standard cleaning units.
Two complete brushing units, each with two positive-drive brush rolls, provide four-stage contact cleaning — removing far more contamination than a single-unit system at any speed.
A dedicated scroll roll with positive drive spreads fabric edge-to-edge before brushing, eliminating tucks and creases that would otherwise cause uneven cleaning or print defects downstream.
A high-speed Velcro roll captures and removes all remaining loose threads that brushing alone cannot dislodge — critical for preventing screen mesh clogging in high-quality print jobs.
Multiple industrial-grade centrifugal blowers working in tandem create sustained negative pressure across the full fabric width, ensuring complete particle extraction at 6000 m/hr throughput.
Precision cloth guiders and guide rolls maintain perfect fabric tracking and tension throughout the cleaning process — critical at 6000 m/hr to prevent edge damage and misalignment.
Two sealed filter bag chambers collect all extracted particles from both brushing stages, with easy-access doors for maintenance without production downtime. Heavy duty structure throughout.
At 6000 m/hr, even brief contamination events cause significant waste. The High Speed Cleaning Unit provides multi-stage defence — brushing, Velcro extraction, and suction — so your screens and print quality are protected at every metre.
Dust, lint, and fibres trapped under the squeegee at high speeds cause catastrophic print defects. Multi-stage cleaning upstream eliminates the risk entirely.
At production speeds above 3000 m/hr, screens block faster than operators can react. The dual-stage system removes contamination before it ever reaches the print zone.
The Velcro roll is the final defence — it captures fine threads that pass through brushing, providing the cleanest possible fabric surface before printing.
Multiple sealed filter bags contain all extracted particles, keeping your production floor clean and protecting operators from airborne fibre exposure during high-speed runs.
The High Speed Fabric Cleaning Unit is available in six output configurations — choose the variant that best fits your existing production line and fabric handling workflow.

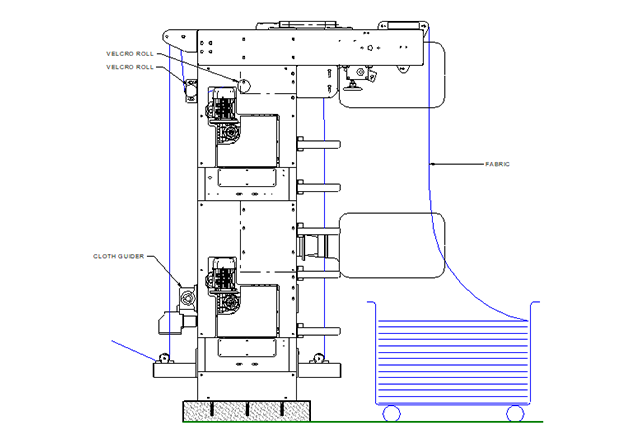

The base configuration — fabric passes through the cleaning unit and exits freely with no output attachment. Maximum flexibility for integration into any existing production line.

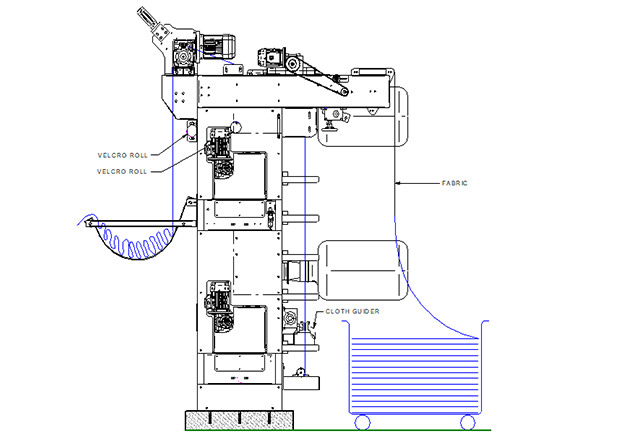

Fabric is fed through a scray (accumulation trough) at the outfeed, enabling tension-free fabric accumulation between processes and synchronisation with downstream machines running at varying speeds.

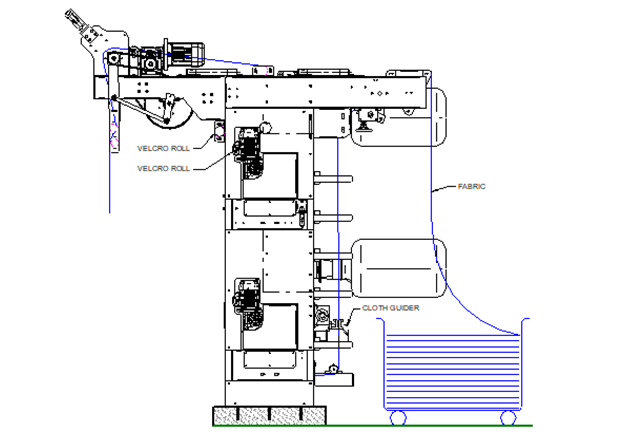

Outfeed fabric is plaited (folded in uniform layers) into a container or trolley. Minimises fabric distortion compared to roll winding and is particularly well-suited to delicate or stretch fabrics.

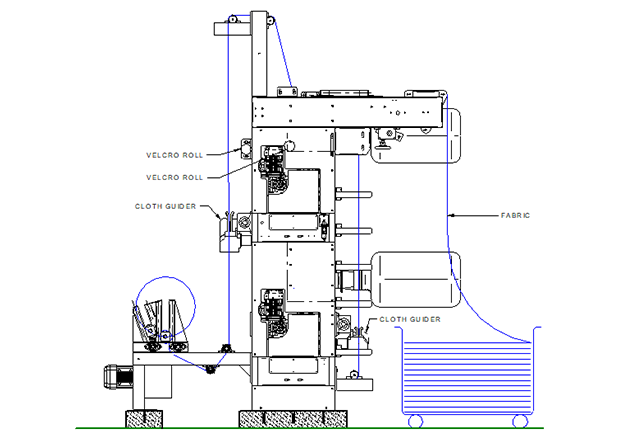

Compact roll winding at outfeed, suited for short to medium run lengths. Minimal additional floor footprint with easy roll changeover between batches.

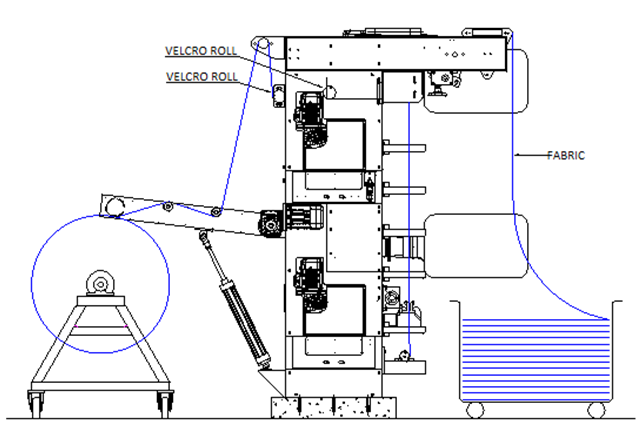

Heavy-duty roll winding for large-diameter fabric rolls. Designed for long production runs and continuous operation with significantly higher roll weights and capacities.

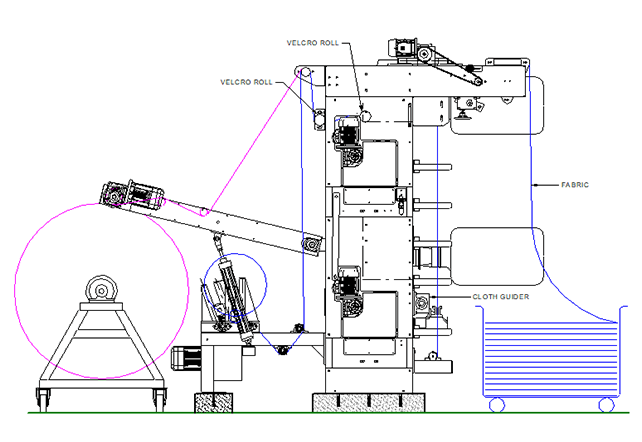

A versatile dual-mode batching unit that lets you switch between small and big batching as required — all within a single machine. No need for separate outfeed equipment when production requirements change.
Fabric enters via motorized infeed. Guide rolls and cloth guiders align it perfectly edge-to-edge before cleaning begins.
A positive-driven scroll roll fully spreads the fabric, removing any tucks or folds before it contacts the brush rolls.
Two brushing units with four positive-driven rolls in total remove dust, lint, and fibres from both faces of the fabric.
The Velcro roll captures residual loose threads while heavy-duty blowers extract all dislodged particles into filter bags.
Perfectly cleaned fabric exits to your choice of output device — batching roll, plaiting device, or scray unit.
